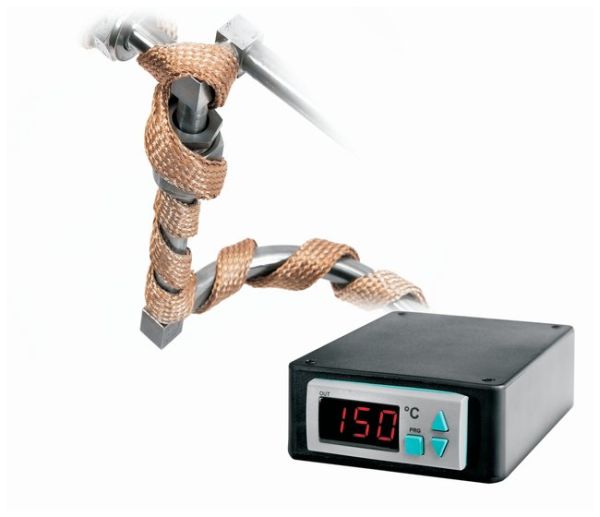

TEMPCTRL & HI HEAT TAPE-6FT

Description

High Temperature Heavy Insulated Heating Tape

• With exceptional flexibility and durability
• Rapid thermal response
• Samox™ knitted and braided outer sheath
• Includes 9 in. (230mm) long high temperature tie downs for easy installation
• Single power leads on opposite ends
• 24 in. (610mm) long power leads with split 2-prong power plug
• Maximum exposure temperature: 760°C (1400°F)
• Power density: 13.1w/ in.² (0.020w./mm²)
• Voltage: 120V

• Digital on/off temperature controller
• Self contained, plug and play design
• Easy programming (display in °C or °F)
• Temperature control range: 0° to 600°C or 32° to 999°F
• Compact with built in J or K type thermocouple
• Upper and lower limits of setpoint can be adjusted by using single key
• Hysteresis adjustable between 1 and 20°
• Exposure temperature: 0° to 50°C (32° to 122°F)
• 5 ft. (1.5m) input power cord with 120V three prong plug, NEMA 5-15 plug
• 5 ft. (1.5m) output power cord with 120V three prong receptacle, NEMA 5-15R
• 120VAC power unit, relay output rated for 10A
