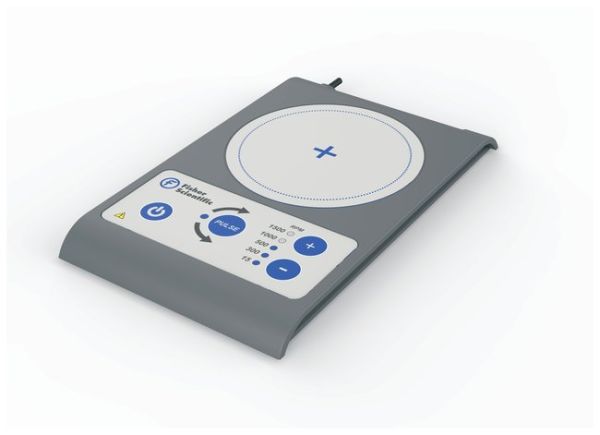

Fisherbrand™ Ultra Thin Magnetic Stirrer

Description

• Modern magnetic coil technology
• Flat surface
• Compact and thin design
• Pulse function provides better mixing (stir bar alternates rotating clockwise and counter clockwise every 30 seconds)
• Simple control panel with easy-to-use interface
• Variable speed setting from 15 to 1500rpm
• Speed indicator during operation
• Anti-skid pads
• Wear-free drive (no moving parts)
• Setup plate and casing made from chemically-resistant materials
• Stir bar docking location to place or attach magnetic stir bar

Technical Specifications

• Maximum stirring volume (H₂O): 800mL
• Maximum stirring capability (tested in H₂O): 500mL at 1500rpm with 2.5cm stir bar
• Speed range: 15 to 1500rpm
• Max. stirring bar length: 2.5cm (0.98 in.)
• Set-up plate material: Polyester
• Set-up plate dimensions: 9.4cm (3.7 in.)
• Dimensions (L x W x H): 18.5 x 11.5 x 1.3cm (7.2 x 4.5 x 0.5 in.)
• Weight: 0.4 to 0.5Kg (0.8 to 1.2 lb.)
• Permissible ambient temperature: 5 to 40°C
• Protection class according to DIN EN 60529: IP 65
• Input voltage: 100 to 230V
• Frequency: 50/60Hz
• Power: 5w
• Auto direction change/Pulse Mode: Yes
• Auto direction change time interval: 30 seconds
• Current speed indicator: Yes
